Wire deck / wire mesh

  • Payment Type: D/P,D/A,T/T,L/C
  • Incoterm: FOB,CIF,EXW, FCA,Express Delivery
  • Min. Order:50 Pieces/Pieces
  • Transportation: Ocean, Land,Air, Express,Others

Description

Wire deck / wire mesh

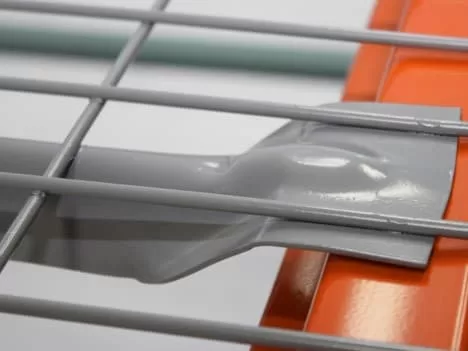

Powder Coat (Standard) Wire deck

  • High-quality powder coat finish
  • Industrial gray standard
  • Custom colors available

Some standard sizes of wire mesh decking

Euro Sizes

Euro Sizes
A. Loading capacity 300kg B. Loading capacity 800kg C. Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100mm Mesh 50×100mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1000×1340
1000×880 1050×880 1050×1340
1050×880 1100×880 800×1340
1100×880 1000×1090 1200×1340



American Sizes

American Sizes
Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24″×46″ 42″×46″ 24″×46″
30″×46″ 42″×52″ 36″×46″
36″×34″ 42″×58″ 36″×52″
36″×46″ 48″×34″ 42″×46″
36″×52″ 48″×46″ 42″×52″
36″×58″ 48″×52″ 44″×46″
42″×34″ 48″×58″ 48″×46″

Tell us what you need and we’ll make our wire decking to suit your specific application based on loading capacities,
equipment used, load handling and other criteria.



Wire deck / wire mesh

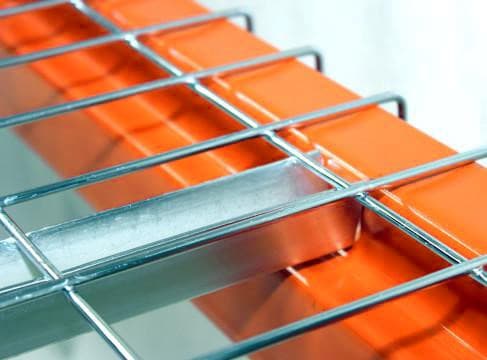

Galvanized Wire deck

  • Electro-galvanized zinc-plated finish
  • Galvanized after weld for maximum durability
  • Freezer or outdoor applications

Some standard sizes of wire mesh decking

Euro Sizes

Euro Sizes
A. Loading capacity 300kg B. Loading capacity 800kg C. Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100mm Mesh 50×100mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1000×1340
1000×880 1050×880 1050×1340
1050×880 1100×880 800×1340
1100×880 1000×1090 1200×1340



American Sizes

American Sizes
Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24″×46″ 42″×46″ 24″×46″
30″×46″ 42″×52″ 36″×46″
36″×34″ 42″×58″ 36″×52″
36″×46″ 48″×34″ 42″×46″
36″×52″ 48″×46″ 42″×52″
36″×58″ 48″×52″ 44″×46″
42″×34″ 48″×58″ 48″×46″

Tell us what you need and we’ll make our wire decking to suit your specific application based on loading capacities,
equipment used, load handling and other criteria.



Wire deck / wire mesh

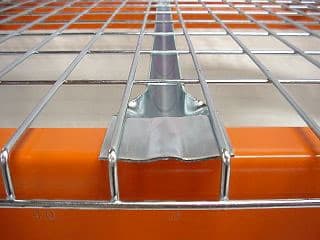

Hot-Dipped Galvanized Wire deck

  • For indoor/outdoor and severe environment applications
  • Maximum level of protection

 Some standard sizes of wire mesh decking

Euro Sizes

Euro Sizes
A. Loading capacity 300kg B. Loading capacity 800kg C. Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100mm Mesh 50×100mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1000×1340
1000×880 1050×880 1050×1340
1050×880 1100×880 800×1340
1100×880 1000×1090 1200×1340



American Sizes

American Sizes
Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24″×46″ 42″×46″ 24″×46″
30″×46″ 42″×52″ 36″×46″
36″×34″ 42″×58″ 36″×52″
36″×46″ 48″×34″ 42″×46″
36″×52″ 48″×46″ 42″×52″
36″×58″ 48″×52″ 44″×46″
42″×34″ 48″×58″ 48″×46″

Tell us what you need and we’ll make our wire decking to suit your specific application based on loading capacities,
equipment used, load handling and other criteria.



Reviews

There are no reviews yet.

Be the first to review “Wire deck / wire mesh”

Your email address will not be published. Required fields are marked *

(1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading.
(2) Lead time: normally in 15-25 days after deposit received.
(3) Sample policy: samples are always available for each model. Samples can be ready in 7-15 days once payment received.
(4) Shipping port: Shanghai, China.
(5) Discounts: we offer good discount for large quantity.

(1) Sea freight: we will update sea freight once we know your sea port where goods will be delivered.
(2) Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

(1) Your inquiry related to our products or price will be replied in 12 hours.
(2) Well-trained and experienced staffs to answer all your inquiries in fluent English.
(3) OEM & ODM, any your customized racking we can help you to design product.
(4) We have very experienced professional engineers to make best solutions.

Send us your requirement , show us your sample or drawings, then we check if we can manufacture, then we make quotation to you if we can do , then pay us sample cost and we make sample , after the sample confirm, pay us the deposit so that we start the bulk production,all the process we have quality control , also we accept your quality control inspect at our factory, when we finish the bulk production, pay us the balance payment, and then we ship the goods to customer.

No, but good quantity comes with good price.
We recommend the order quantity for regular products of TS Industry to fit at least one 20ft. container, which is about 15 tons.
