China Jiangsu Suzhou Cantilever Rack Reliable Manufacturer

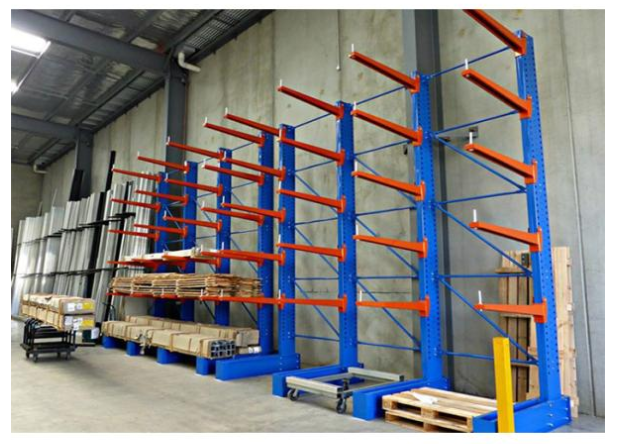

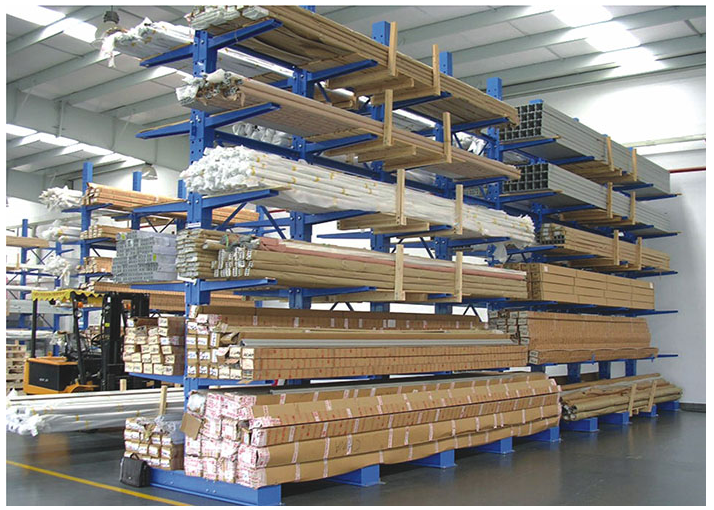

1. Cantilever Rack are divided into single arm and double arm types, which efficiently store similar products such as wood, pipes, and long strips. Cantilever shelves can be composed of multiple unit systems consisting of a single column unit and a continuous cantilever through horizontal and diagonal pull rods.

2. Cantilever Rack are effective storage systems in terms of quality, safety, and management. The column piece is composed of a column and a base. The column is made of two specially designed C-shaped steel welded together. This structure fully utilizes the material’s load-bearing capacity and has the characteristics of high load-bearing capacity and low cost.

3. Prefabricated double row holes for the columns, with a pitch of 100mm. The cantilever is connected to the columns through plate pins and can be adjusted up and down with a pitch of 100mm.
